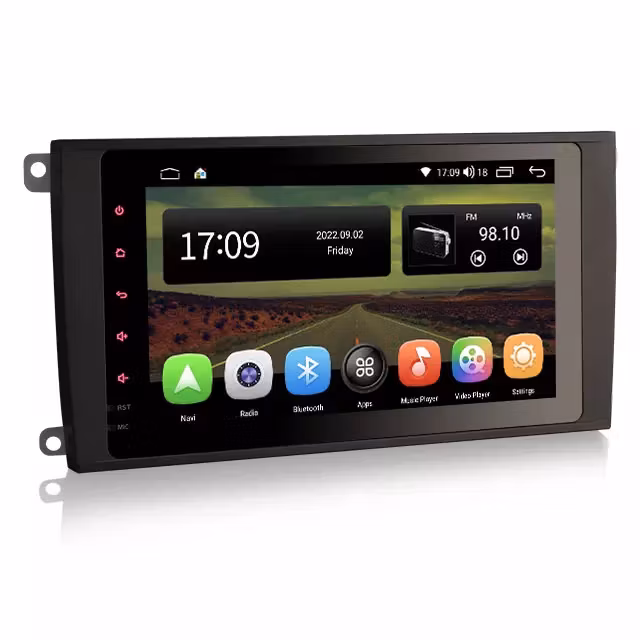

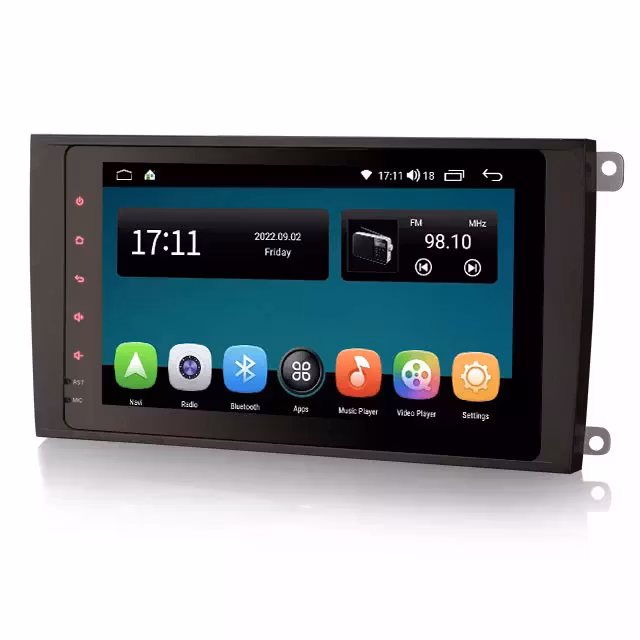

8"android 11 , bilstereo Porsche Cayenne (2003-2010) gps wifi carplay android auto blåtand rds Dsp 32gb DAB, 4G LTE

3 695 kr

Artikelnummer: 1027

Features:

- Android 11.0 OS, Octa Core, 8* A55 1600MHz CPU Architecture, benchmark scores does go above 100,000.
- 2GB RAM and 32GB ROM, 2 USB up to 2* 256GB extended Storage.
- Built-in DSP Amplifier System, which bring the perfect sound effect in your car.
- Built-in Wired & Wireless Apple CarPlay and Android Auto module, you don't need to use another adapter, just connect your smartphone to this unit with USB or BT to use CarPlay and Android Auto function.
- Built-in BT module, which supports hands-free function with A2DP Audio Streaming.
- Built-in GPS Module, which supports offline GPS Navigation, GPS function ready to use.
- Built-in Dual Band WiFi Module for Internet, support 2.4GHz and 5GHz WiFi networking, go online faster.
- Built-in 4G Module for Internet, support 99% of carriers in the word, support micro SIM card.
- Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB.
- Built-in USB, Radio, RDS, WiFi, Clock, Calendar, Calculator, Chrome, Adobe Reader.
- Support DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN etc. extended functions.
- Support Mirror Link with iPhone via WiFi and with Android Smartphone via USB or WiFi.
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving, Canbus decoder included.
- Support panel light colors adjustment, many RGB-colors can be chosen
- Support Split Screen, you can run two apps side by side.


Compatible Models & Years:

Porsche Cayenne 2003-2010

Important Note:
This unit has front panel size 236mm(Top width)*125mm(Height)*230mm(Bottom width) . To make sure the item fits your car, please check the shape and dimensions of the center console or the original car radio of your vehicles which is the same as the description in our listing before purchasing.




  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 8 inch
- Front panel Size: 236mm(Top width)*125mm(Height)*230mm(Bottom width)
- Package Size: 300mm*170mm*130mm
- Shipping Weight: 2.5kg



  System
- Operation System: Google Android 11.0
- CPU: 1600MHz Cortex 8* A55
- RAM: 2GB
- Internal Memory: 32GB
- Extended USB: Support USB Stick up to 256GB



  Display
- Screen Type: Multi-touch screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 1 live wallpapers, 6 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes



  Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot, support 2.4GHz and 5.0GHz Dual Band WiFi networking.
- 3G/4G Internet: Built-in 4G Module, support 99% of carriers in the word, support micro SIM card.
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT



  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: TDA7851, Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB



  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)



  GPS
- Operation System: Android 11.0
- Support Maps: IGO, Sygic, Waze maps for Android 11.0
- Support offline navigation: Yes, ready to use.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps



  BT
- Hands Free: Yes
- A2DP (BT Stereo Music): Yes, can play stereo music through BT
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back



  Radio
- Main Chips: TDA7708
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)



  USB
- Position: 2 USB Port On the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P



  Mirror Link
- Ready to use: Yes
- Built-in Mirror Link App: Yes, the name is EasyConnection
- Support Device: iPhone iOS 7.1 and above, Android phone with Android 5.0 and above
- Connection: iPhone via WiFi and Android Phone via WiFi or USB
- Unit's Screen Control Phone: Just support the most of Android SmartPhones



  Android Auto
- Built-in Wired & Wireless Android Auto: Yes, just connect your smartphone to this unit with USB or BT to use this function
- Connection: USB or BT
- Support Device: Android Smartphone with Android 5.0 and above
- Support Wireless connecting: Yes
- Control the connected Android Phone on head unit: Yes



  CarPlay
- Built-in Wired & Wireless CarPlay: Yes, just connect your smartphone to this unit with USB or BT to use this function
- Connection: USB or BT
- Support Device: iPhone iOS 7.1 and above
- Support Wireless connecting: Yes
- Unit's Screen Control Phone: No, but you can download CarPlay supported function APK to use and control



  Car DVR
- Built-in DVR App: Yes, just connect a USB DVR Camera to use this function
- Connection Port: USB
- Storing Position: TF Card in Camera
- Touch Control DVR-Camera on unit: Yes
- DVR-Camera incl.: No, you can contact us to buy it together



  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control TPMS Module on unit: Yes
- TPMS Module incl.: No, you can contact us to buy it together



  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes
- DAB+ Box incl.: No, you can contact us to buy it together



  AV-IN
- Built-in AV-IN App: Yes, Support external Audio & Video Input
- Connection Port: RCA
- Support DTV-IN: Yes, you can connect with a Digital TV Box (DVB-T/T2, ATSC, ISDB) to use



  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a BT OBD2 Scanner Tool to use this function
- Support steering wheel control
- Support change panel light colors, many RGB-colors can choose
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB



  Input
- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- CarPlay In: One
- TPMS Box In: One
- DAB+ Box In: One
- Car DVR In: One



  Output
- Video Out: Two
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

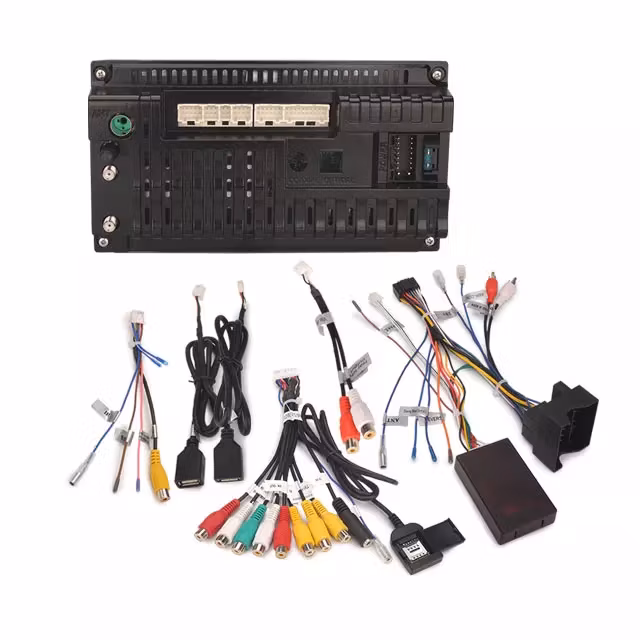

  Accessories
- 1*User's Manual in English
- 1*RCA AV Connecting Cable
- 1*RCA Audio Output Cable
- 1*Camera Input and Control Cable
- 1*Power Cable with ISO Connector
- 1*Power Cable with Quadlock Connector
- 1*Special CanBus Decoder Box
- 1*Radio Antenna Adapter Cable
- 2*Rear USB Adapter Cables
- 1*4G Antenna
- 1*GPS Antenna
